The B60 system combines Dolly, Tower Lift (telescope) and Remote Head. Like all Blackcam Robotics, the operation is passive and inaudible while active. Therefore, the system is very popular for classical concert recordings.

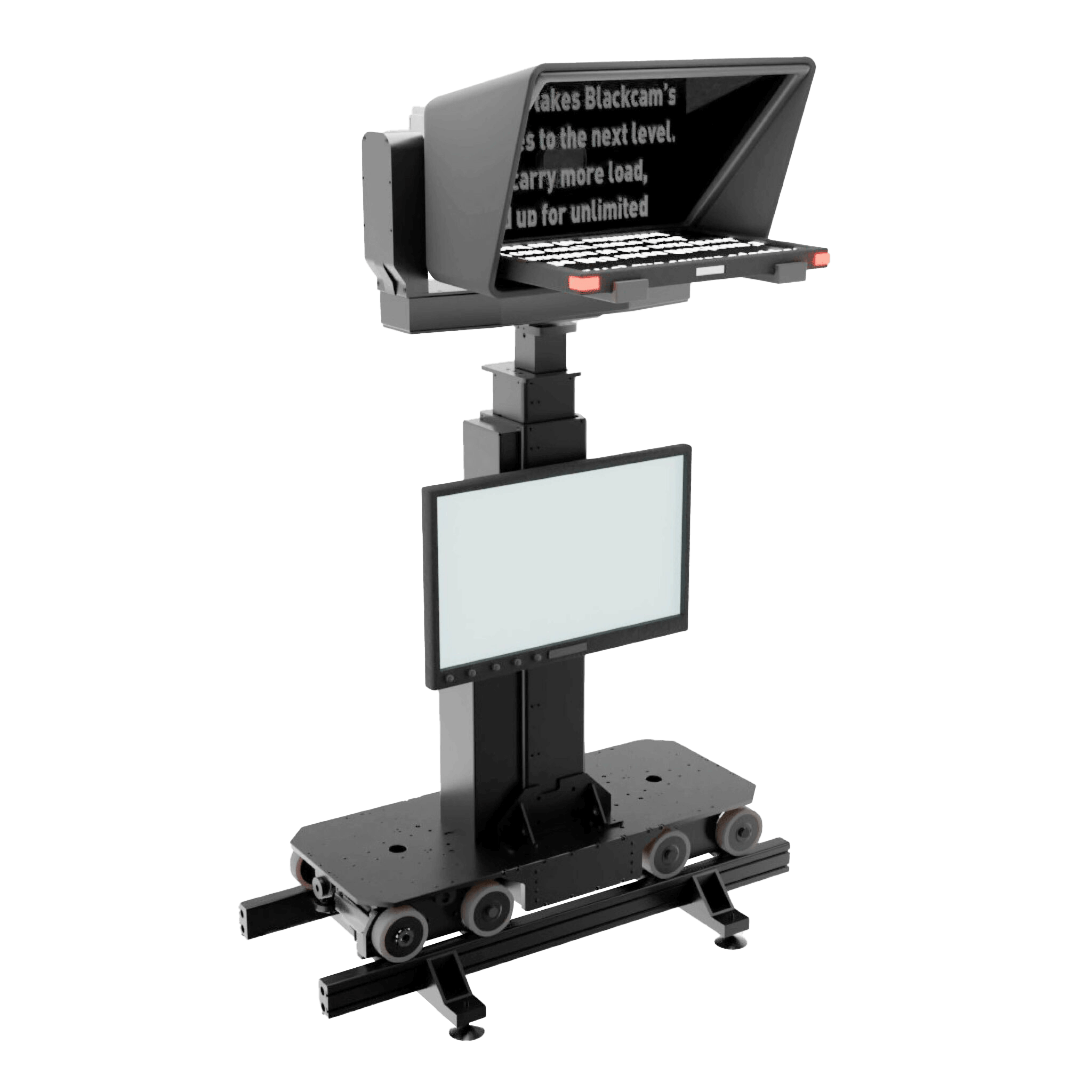

For the fully automated studio version with the B60 dolly, a specialized Studio Remote Head was developed to accommodate studio cameras with teleprompters, offering an even higher payload capacity. The payload (camera & prompter) can be balanced without additional weights. We offer various track lengths to suit different studio needs, with options available up to 10 meters.
Let us know how you would like to use it, we create the system configuration that fits your needs.
Measurements: (length x width x height): 95 x 45 x 12 cm (37.4 x 18 x 4.7 in)
Weight: 40 kg (88.18 lb)
Speed: Standard 4 m/s (13 ft/s), high-speed version on request
Drive Options: Self driven (600W Servomotor)
External rope drive (2.3 kW Servomotor)
Power supply: Cable or battery operation
Batteries: LiPo batteries for dolly movement, runtime approx. 2hrs
Dimensions: 40 cm width x 6 cm height (15.78 in width x 2.36 in height), black anodized
Weight: 4 kg/m (8.82 lb/3.28 ft)
Track types: Rectangular track in modular sections (straight and pre-bended)
Round track in modular sections (straight and pre-bended)
Round track off the reel with supports
Pieces: Standard length: 4 m, 2 m, 1 m, 50 cm (13.12 ft, 6.56 ft, 3.28 ft, 1.64 ft)
Custom length possible
Curves: Minimum inner radius: 2 m (6.56 ft)
Several radiuses on stock, customized radius possible
Camera signal: HD-SDI via BNC, return PGM-Mix as SD/HD-SDI
Tally: XLR3 (dry contact between pin 2+3)
RCP: – depending on Camera –
Intercom: Listen + Talkback via 2 x XLR3 or other Intercom device provided
Power: 1 x 16Amp at operator desk
Operator desk: Non-restricted view to tracks is recommended
Need to be rain / sun covered
1 table + 2 chairs to be provided on site
Tracks: Wireless setups always need a off-park-position (i.a. battery change)
Access to tracks must be possible
If applicable, protection against audience contact is necessary
Radio backup: If applicable, allow for cable run tracks < > operator desk
