Remote Heads

David Guetta | Dubai

RH2W

Long Focal Length Remotely Controlled

The very stable Remote Head RH2W is specially designed for system cameras with large box optics with zoom factors in the range > 120x. It is controlled latency-free from a remote control unit – via IP or fiber optics – at an indefinite distance. The operator stands as usual at a tripod behind the monitor and works at his usual controls. A console control for remote operators is of course also available.

With the RH2W, shake-free and stable images with ultra-long focal length are possible even for slow motion using remote control. The entire dynamic range is fully mapped in the controller and does not require separate electronic speed range adjustment as with other remote controlled systems.

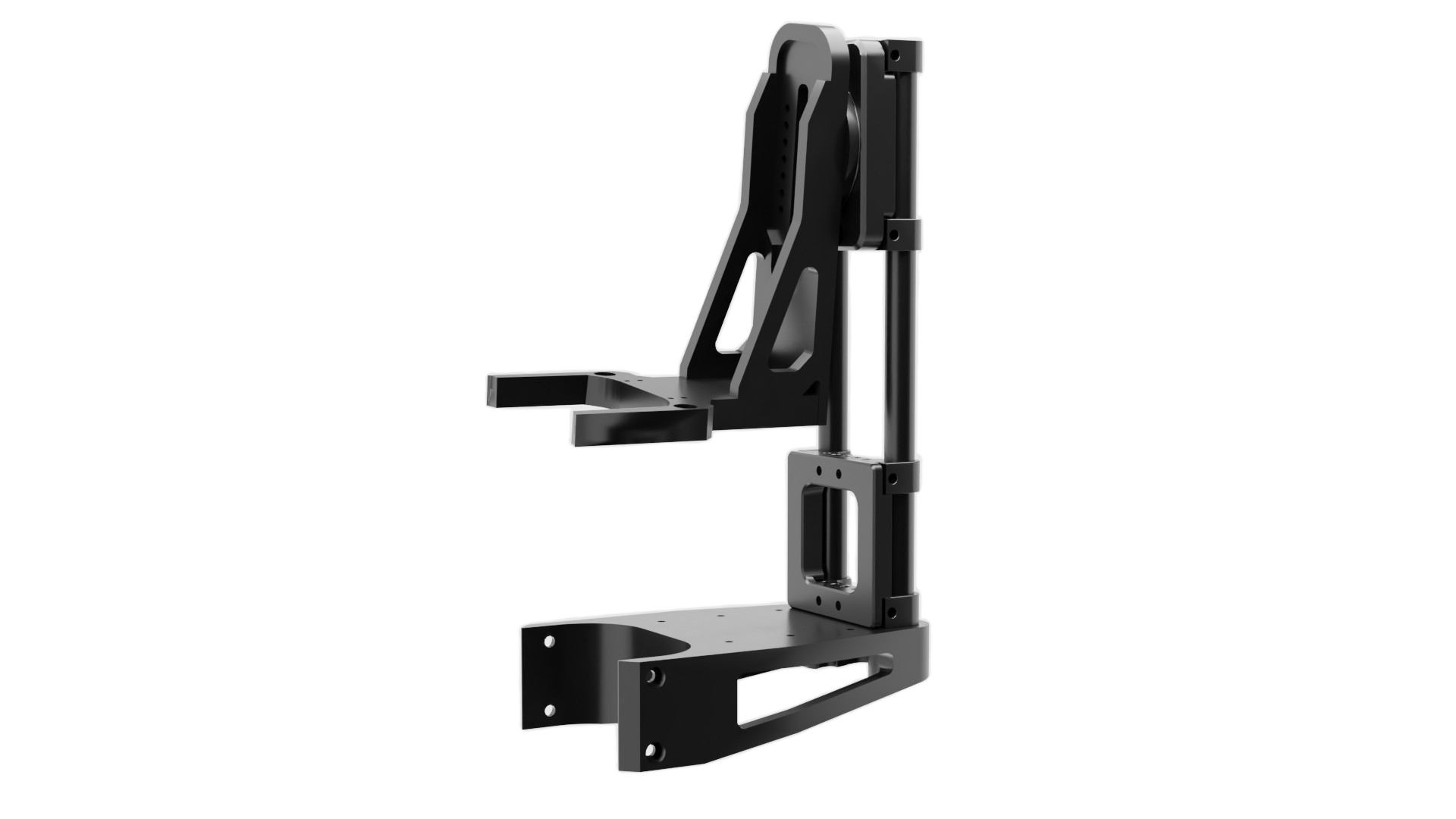

RH U-Extension

Dimensions of extended head: 13.4 x 13.8 x 4 in (34 x 35 x 10 cm)
Upgrades the B40 & B60 head to shoulder size cameras like: ARRI AMIRA. Sony VENICE, Grass Valley LDX 86/82 series and others
Technical: With this extension, the B40 & B60 Remote-Head can take up to 55.12 lb (25 kg) load

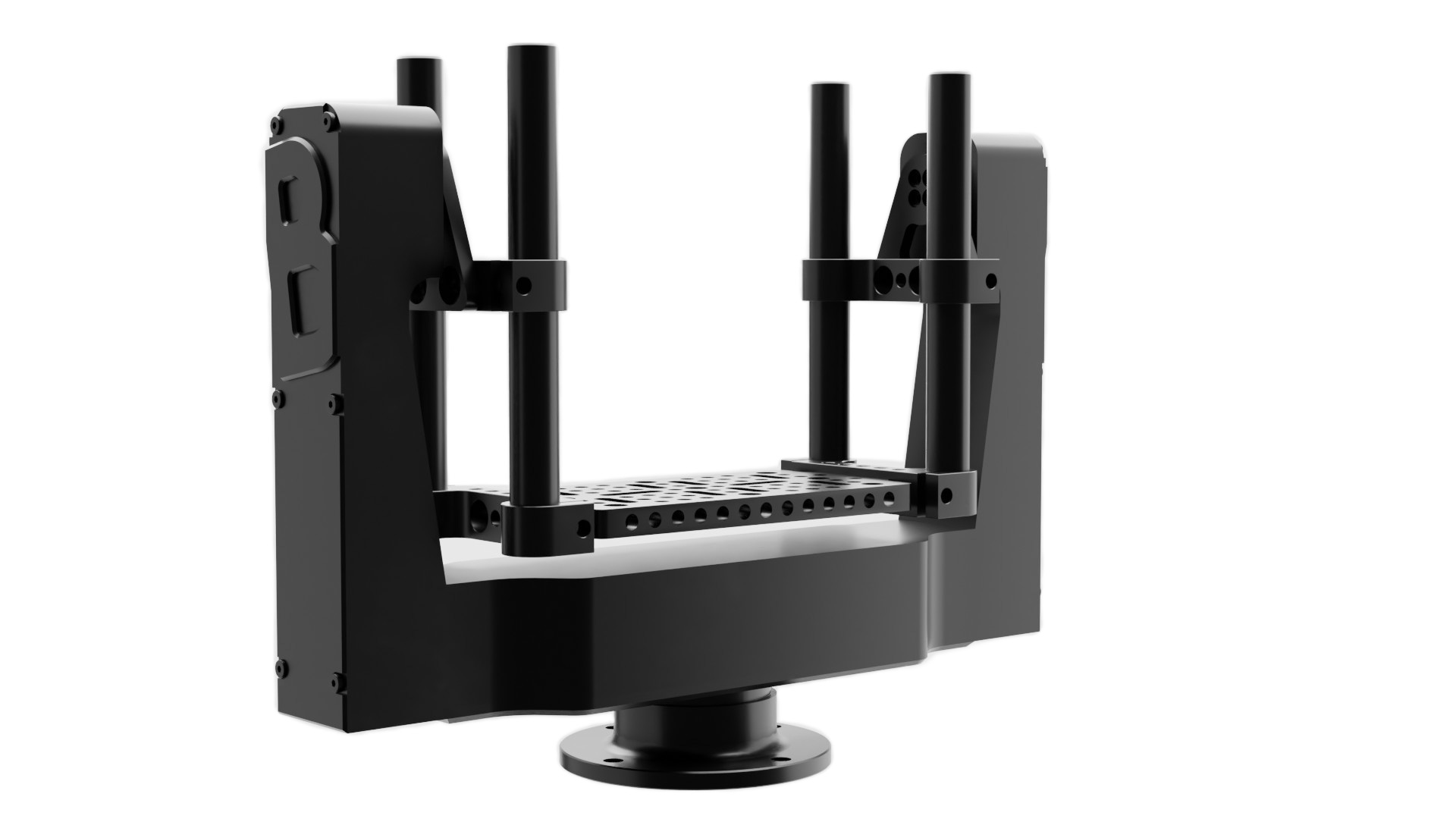

RH-Large

Precise and Stable

A Blackcam Remote Head is characterized by high stability and the possibility of very fast as well as very slow, smooth and precise movements. A very reliable camera head that gives operators great freedom.

With a payload of up to 15 kg, 360 degree rotation is possible in one second. The resolution is > 70.00 increments per degree for pan and tilt.

Dimensions: 13.4 x 9.5 x 4 in (34 x 24 x 10 cm)
Best choice for models like: Sony HDC P1, Grass Valley LDX Compact, Ikegami HDL-45E, ARRI ALEXA Mini and AMIRA.
Technical: For weights around 5 – 8 kg, ENG lens control built in as standard, all other controls possible

RHMedium

Dimensions: 11.8 x 8.2 x 3.1 in (30 x 21 x 8 cm)
The best for cameras like: Sony BRC, Nikon DSLR, Canon EOS
Technical: Loads up to 11.02 lb (5 kg), various lens controls for ENG and film lenses available

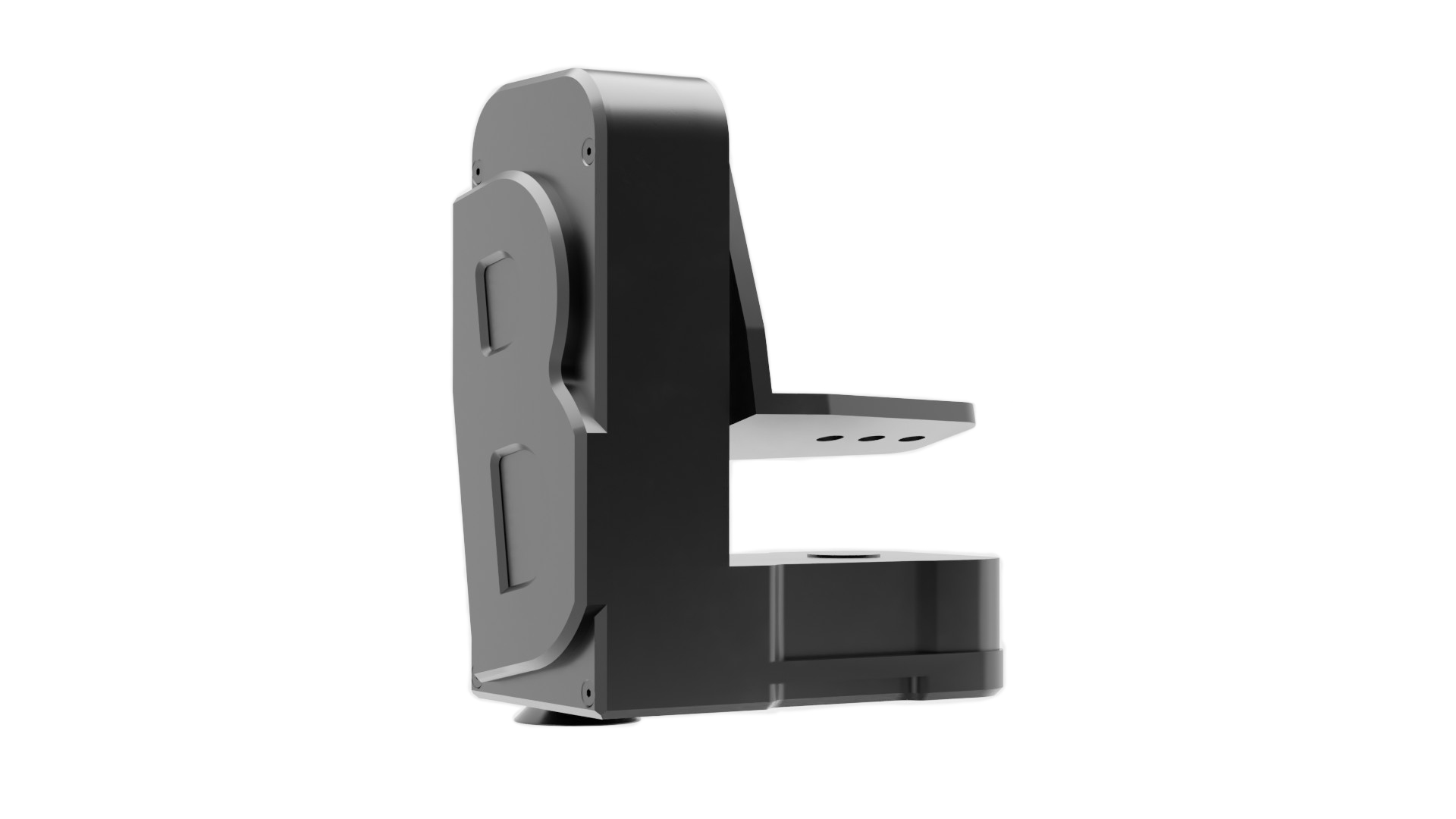

RHSmall

Dimensions: 4.5 x 3.1 x 2.3 in (11.5 x 8 x 6 cm)
Perfect for camera models like Toshiba IK HD5, Ikegami HDL-23, ATOM one, Blackmagic Pocket
Technical: Loads up to 1.1 lb (500 gr) of camera and lens. Lens control possible, even for special lenses
